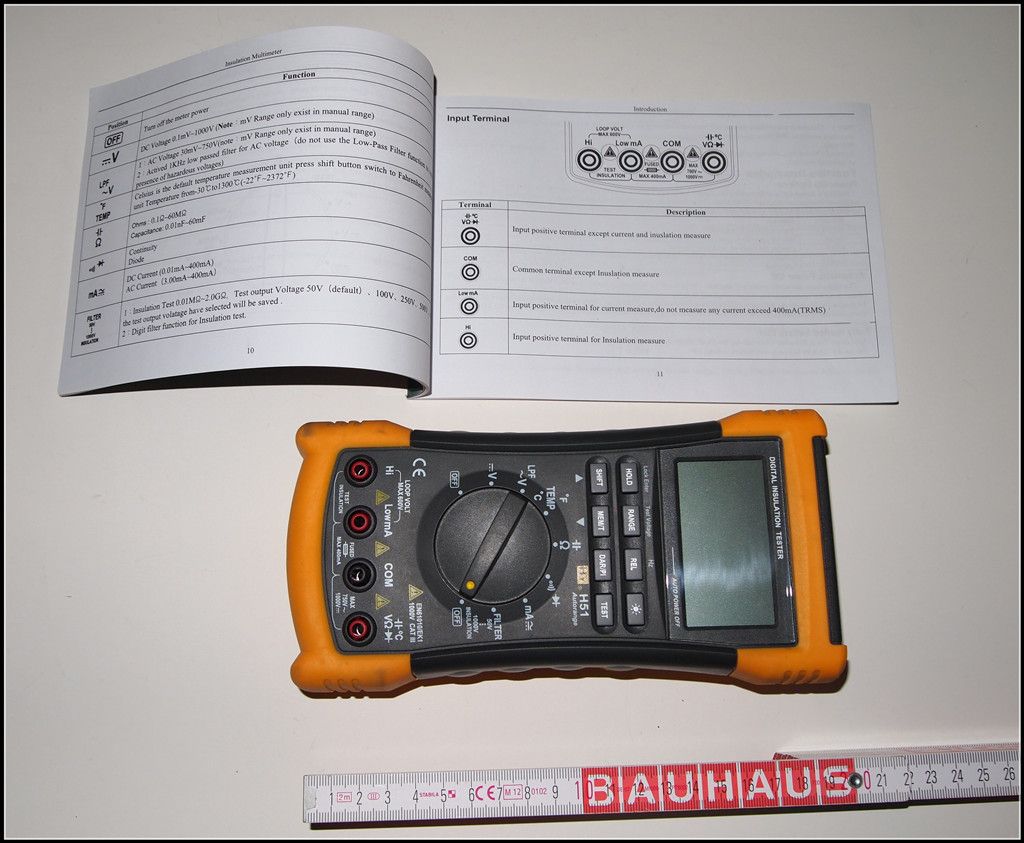

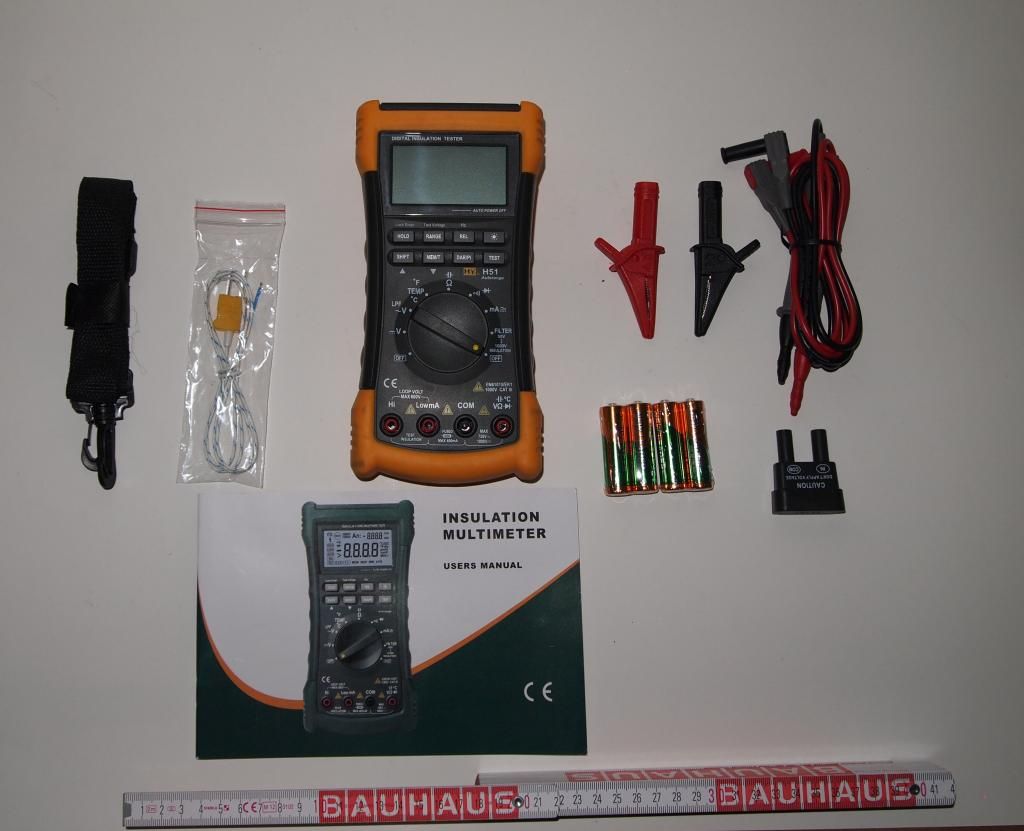

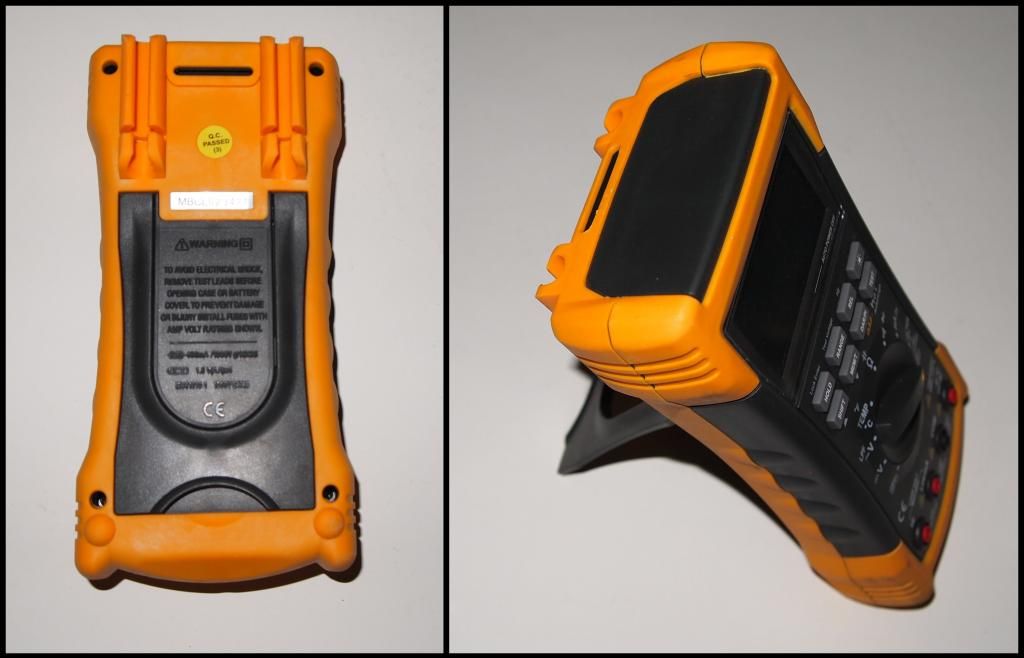

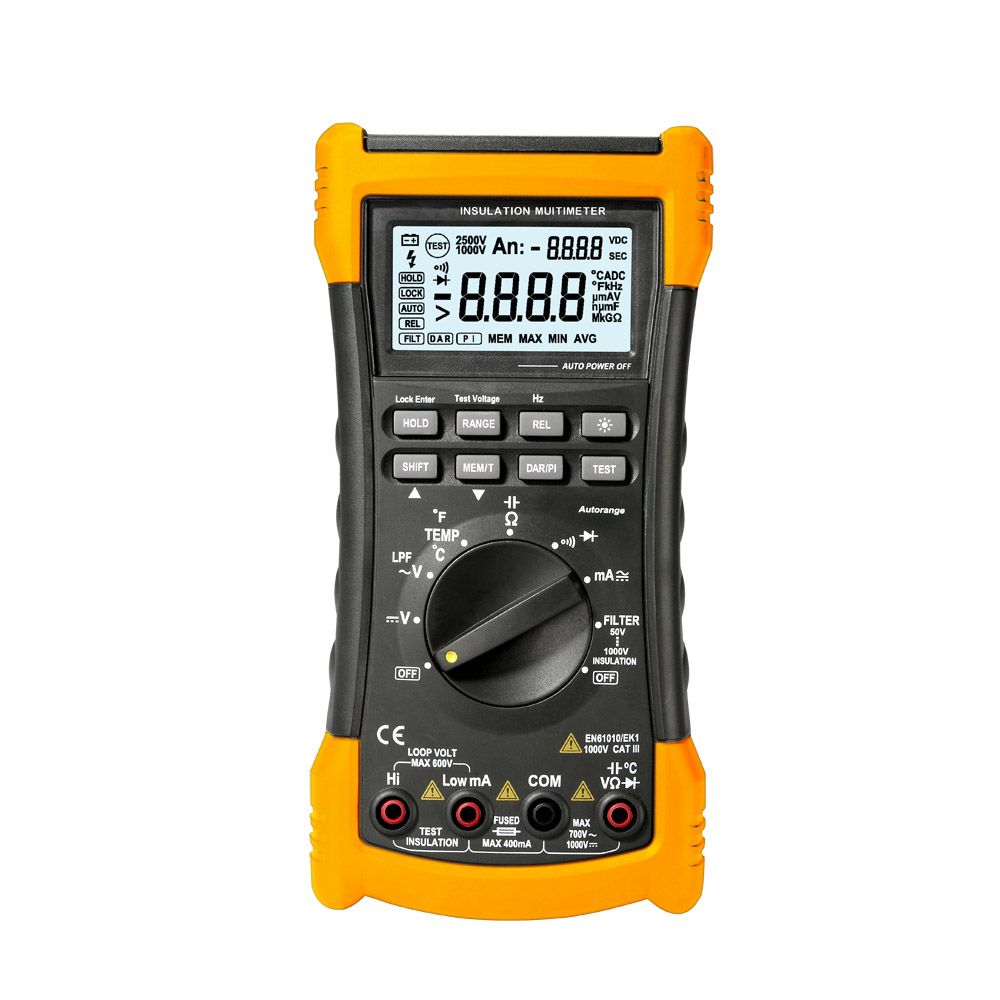

HY Digital Multimeter H51


HY Digital Multimeter H51

Auf Lager

Alter Preis 139,00 €
129,99
Preis inkl. MwSt., zzgl. Versand
Versandgewicht: 390 g




H51 Multifunction Insulation True RMS Multimeter w/ 1 yr warranty 1000V

Specifications

General Specifications

l  Complies with IEC/EN 61010-1 1000V CAT III 600 V CAT IV.

l  1000V DC Voltage750V AC VoltageTRMS.

l  6600 Countexcept for capacitancetemperatureinsulation.

l  When the input terminals is V and COM,The overload protective voltage is up to AC 250 V (TRMS) ;When the input terminals is mA and COM, protective Current is 0.4A; when the input terminals is Hi and Lo , The overload protective voltage is 600V.

l  BatteriesFour AA batteries (NEDA 15A or IEC LR6) Meter use 1000 hours; Insulation test use: Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.

l  Insulation Measurement Range :           0.01 MΩ to 2 GΩ.

l  Insulation Test Voltages :                 50, 100, 250, 500, 1000 V .

l  Insulation Source Voltage:                + 20 %, - 0 %.

l  Insulation Short-Circuit Test Current :       1 .5mA nominal.

l  Insulation Auto Discharge :               Discharge time <1 second for C = 1 μF or less.

l  Insulation Live Circuit Detection :          Inhibit test if terminal voltage > 20 V prior to initialization of test.

l  Insulation Maximum Capacitive Load:      Operable with up to 1 μF load.

l  Storage Temperature :                    -40 °C to 60 °C.

l  Operating Temperature:                  0°C to 40 °C .

l  Storage    Altitude:                    12000m

l  Operating  Altitude:                    2000m 1000V CAT III,3000m 1000V

l  Temperature Coefficient:                 0.05 × (specified accuracy) per °C for temperatures < 18 °C or > 28 °C.

l  Relative Humidity:                      40%~75%.

l  Size:                                 205(L)×102(W)× 58(H)mm.

l  Weight:                               approx 390g.
